ÜÇ ÇIKIŞLI T-RT SERİLERİ



İKİ ÇIKIŞLI  T-RT SERİLERİ

  • Universal AC giriş / Tam skala
    (D-120, RD-125 anahtar ile AC giriş seçimli)
  • Korumalar: Kısa devre, aşırı yük, aşırı voltaj
  • Serbest hava akışı soğutmalı
  • Küçük boyutlu, yüksek güç yoğunluklu
  • %100 tam yük testi
  • 2 yıl garanti
ÜRÜN KODUBESLEME GERİLİMİÇIKIŞ 1 ÇIKIŞ 2   ÇIKIŞ 3 EBATLAR

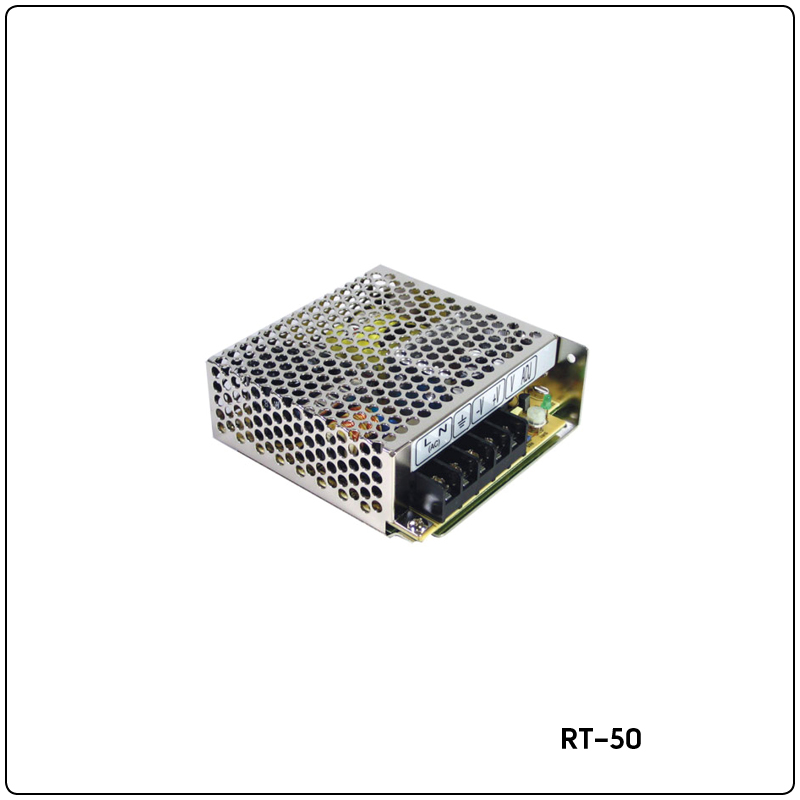

50W RT SERİSİ
RT-50A88-264 VAC  125-373 VDC5VDC4A12VDC2A-5VDC0.5A 99 x 97 x 36 mm
RT-50B88-264 VAC  125-373 VDC5VDC4A12VDC2A -12VDC 0.5A99 x 97 x 36 mm
RT-50C88-264 VAC  125-373 VDC5VDC4A 15VDC 2A-15VDC0.5A99 x 97 x 36 mm

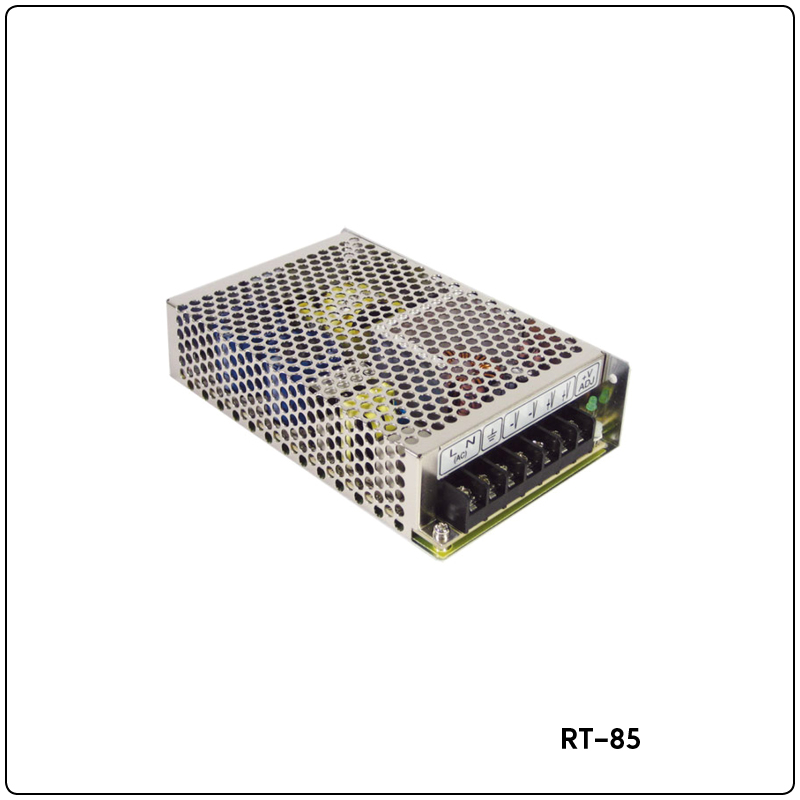

85W RT SERİSİ
RT-85A88-264 VAC  125-373 VDC5VDC8A12VDC3.5A-5VDC 0.5A159 x 97 x 38 mm
RT-85B88-264 VAC  125-373 VDC5VDC8A12VDC 3.5A-12VDC0.5A159 x 97 x 38 mm
RT-85C88-264 VAC  125-373 VDC5VDC7A15VDC3A-15VDC0.5A159 x 97 x 38 mm
RT-85D88-264 VAC  125-373 VDC5VDC 6A24VDC 2A12VDC1A159 x 97 x 38 mm

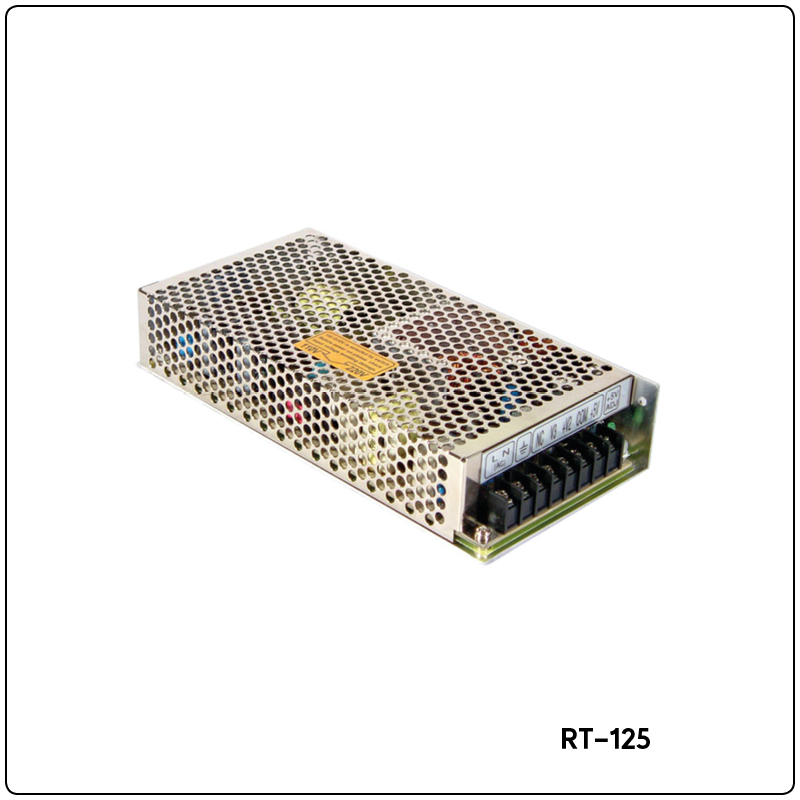

125W RT SERİSİ
RT-125A115-230VAC 240-370VDC5VDC12A12VDC5.5A-5VDC 1A199 x 98 x 38 mm
RT-125B115-230VAC 240-370VDC5VDC 12A12VDC5A-12VDC1A199 x 98 x 38 mm
RT-125C115-230VAC 240-370VDC5VDC 10A15VDC4.5A-15VDC1A199 x 98 x 38 mm
RT-125D115-230VAC 240-370VDC5VDC 8A24VDC2A 12VDC  3A199 x 98 x 38 mm

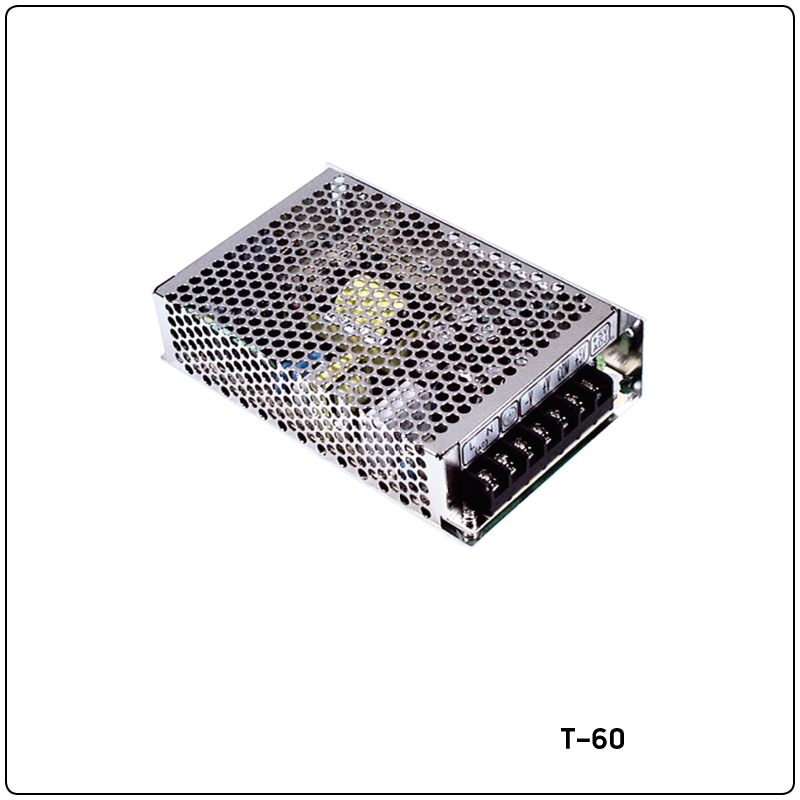

60W T SERİSİ
T-60A85-264VAC 120-370VDC5VDC 5A12VDC  2.5A-5VDC 0.5A159 x 97 x 38 mm
T-60B85-264VAC 120-370VDC5VDC 5A12VDC  2.5A-12VDC 0.5A159 x 97 x 38 mm
T-60C85-264VAC 120-370VDC5VDC 5A15VDC 2A-15VDC 0.5A159 x 97 x 38 mm

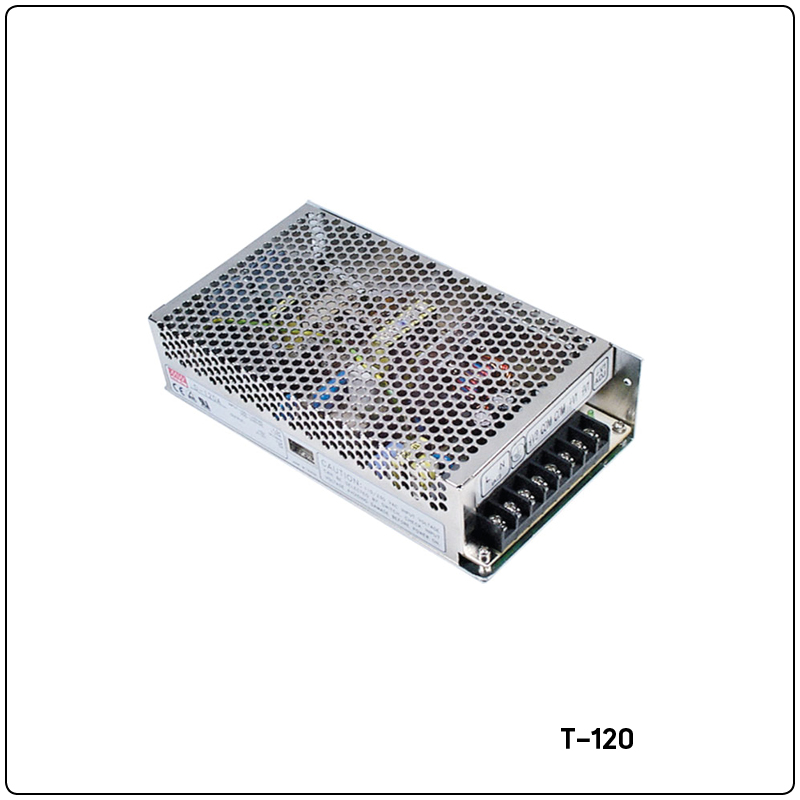

120W T SERİSİ
T-120A88-132VAC&176-264VAC5VDC11A12VDC5A-5VDC 1A119 x 110 x 50 mm
T-120B88-132VAC&176-264VAC5VDC11A12VDC  4.5A-12VDC1A 119 x 110 x 50 mm
T-120C88-132VAC&176-264VAC5VDC11A15VDC  5A-15VDC 1A119 x 110 x 50 mm
T-120D88-132VAC&176-264VAC5VDC11A 12VDC2.5A 24VDC2A119 x 110 x 50 mm
  • Ebatlar (Boy x En x Yükseklik) mm.
  • & 110-220VAC Anahtar seçimi
