STANDART VE MEDİKAL AÇIK TİP GÜÇ KAYNAKLARI



STANDART VE MEDİKAL AÇIK TİP GÜÇ KAYNAKLARI

  • Universal AC giriş / Tam skala
  • Düşük sızıntı akımı <0.5 ma.(PS-05/15)
  • Düşük sızıntı akımı <300 mikro amper (NFM-20)
  • Korumalar: Kısa devre, aşırı yük, aşırı voltaj, aşırı sıcaklık
  • NFM serisi medikal on bord açık tip güç kaynağıdır.
  • PS Serisi açık tip tek çıkışlı güç kaynağıdır.
  • PD Serisi açık tip iki çıkışlı güç kaynağıdır. PT Serisi açık tip üç çıkışlı güç kaynağıdır.
  • İzolasyon Class II (NFM-5,NFM-10,NFM-15) İzolasyon Class I (NFM-20)
  • Serbest hava akışı soğutmalı
  • %100 tam yük testi
  • 2 yıl garanti
ÜRÜN KODUBESLEME    GERİLİMİÇIKIŞ EBATLAR

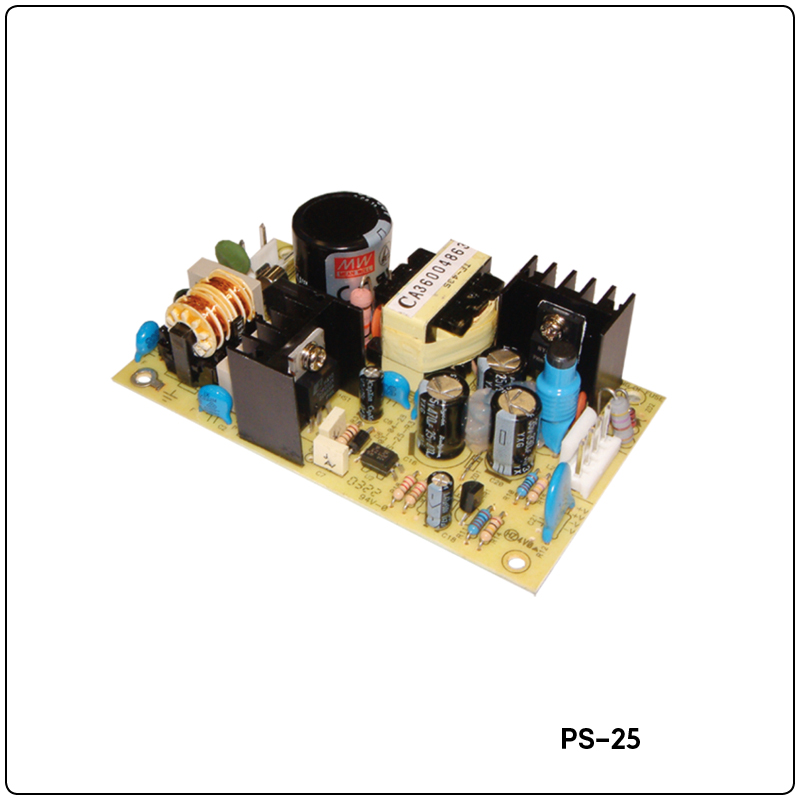

25W PS SERİSİ
PS-25-3.390-264VAC; 120-370VDC  3.3VDC0-5.0A 107 × 61 × 28 mm
PS-25-590-264VAC; 120-370VDC  5.0VDC0-5.0A107 × 61 × 28 mm
PS-25-7.590-264VAC; 120-370VDC  7.5VDC0-3.3A 107 × 61 × 28 mm
PS-25-1290-264VAC; 120-370VDC   12.0VDC 0-2.1A 107 × 61 × 28 mm
PS-25-13.5 90-264VAC; 120-370VDC  13.5VDC 0-1.9A 107 × 61 × 28 mm
PS-25-1590-264VAC; 120-370VDC  15.0VDC 0-1.7A 107 × 61 × 28 mm
PS-25-24 90-264VAC; 120-370VDC  24.0VDC 0-1.0A 107 × 61 × 28 mm
PS-25-27 90-264VAC; 120-370VDC  27.0VDC 0-0.9A 107 × 61 × 28 mm
PS-25-48 90-264VAC; 120-370VDC  48.0VDC 0-0.5A 107 × 61 × 28 mm

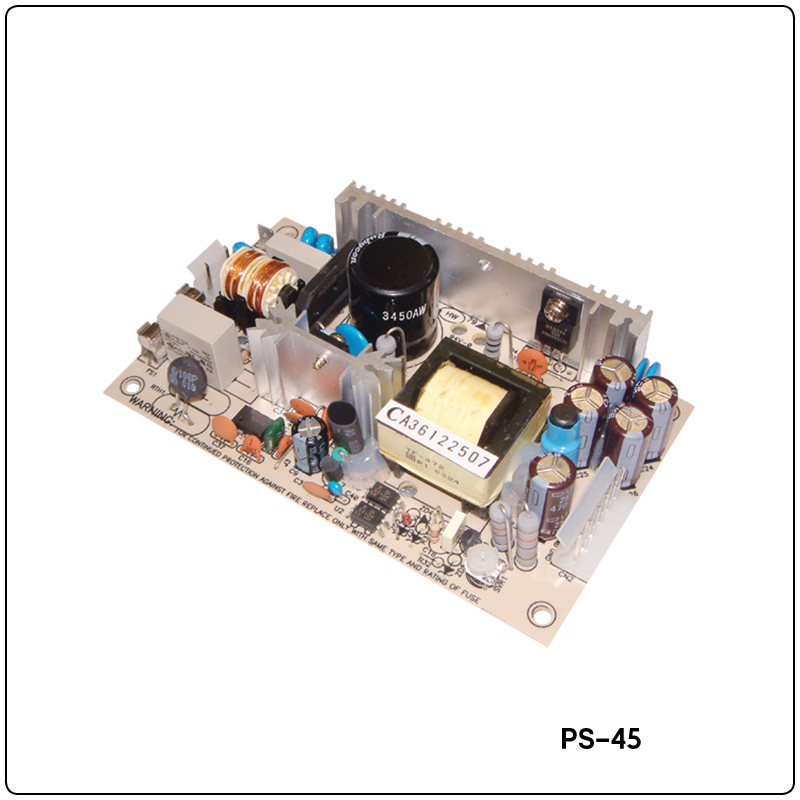

45W PS SERİSİ
PS-45-3.390-264VAC; 120-370VDC  3.3VDC0-8.0A 127 × 76 × 28 mm
PS-45-590-264VAC; 120-370VDC  5.0VDC0-8.0A 127 × 76 × 28 mm
PS-45-7.590-264VAC; 120-370VDC  7.5VDC0-5.4A 127 × 76 × 28 mm
PS-45-1290-264VAC; 120-370VDC  12.0VDC 0-3.7A 127 × 76 × 28 mm
PS-45-13.5  90-264VAC; 120-370VDC   13.5VDC  0-3.3A  127 × 76 × 28 mm
PS-45-15 90-264VAC; 120-370VDC   15.0VDC  0-3.0A  127 × 76 × 28 mm
PS-45-24  90-264VAC; 120-370VDC   24.0VDC  0-1.9A  127 × 76 × 28 mm
PS-45-27  90-264VAC; 120-370VDC   27.0VDC  0-1.7A  127 × 76 × 28 mm
PS-45-48  90-264VAC; 120-370VDC   48.0VDC  0-1.0A  127 × 76 × 28 mm
25W PD SERİSİ
PD-25A85-264VAC; 120-370VDC  5VDC0.2-2.5A107 × 61 × 28 mm
  12VDC 0.1-1.5A
PD-25B85-264VAC; 120-370VDC  5VDC 0.2-2.0A107 × 61 × 28 mm
  24VDC 0.1-1.0A
PD-250585-264VAC; 120-370VDC  5VDC 0.1-3.0A107 × 61 × 28 mm
–5VDC 0.1-2.5A
PD-251285-264VAC; 120-370VDC  12VDC 0.1-1.2A107 × 61 × 28 mm
–12VDC 0.1-1.2A
PD-2515 85-264VAC; 120-370VDC    15VDC     0.1-1.0A107 × 61 × 28 mm
–15VDC      0.1-1.0A
PD-250385-264VAC; 120-370VDC    3.3VDC 0.2-5.0A107 × 61 × 28 mm

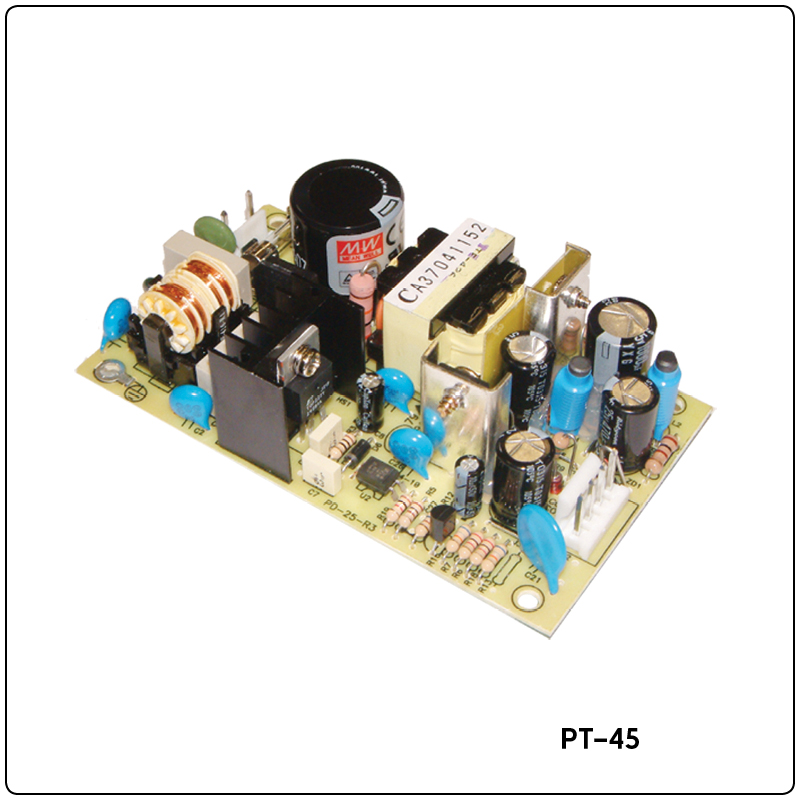

45W PT SERİSİ
PT-45A90-264VAC; 120-370VDC  5VDC0.4-5.0A 127 × 76 × 28 mm
  12VDC0.2-2.5A
–5VDC0.0-5.0A
PT-45B90-264VAC; 120-370VDC  5VDC0.4-5.0A127 × 76 × 28 mm
  12VDC0.2-2.5A
–12VDC0.0-0,5A
PT-45C90-264VAC; 120-370VDC  5VDC0.4-5.0A127 × 76 × 28 mm
  15VDC0.2-2.3A
–15VDC0.0-0.5A
PS-450390-264VAC; 120-370VDC  3VDC0.0-5.0A127 × 76 × 28 mm
  5VDC0.2-7.0A
  12VDC0-1.2.0A

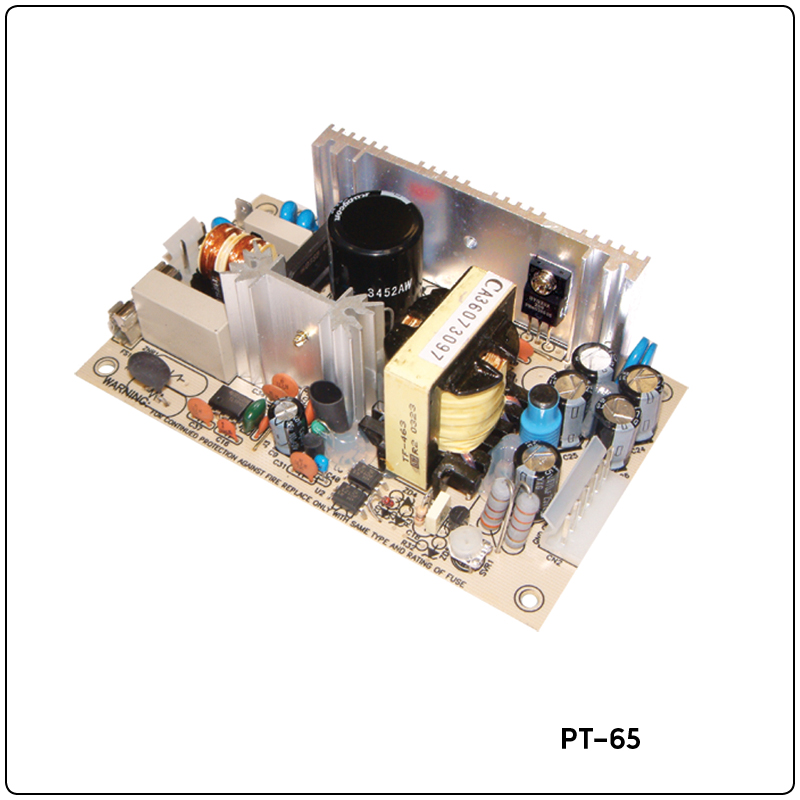

65W PT SERİSİ
PT-65A90-264VAC; 120-370VDC   5VDC0.4-7.0A127 × 76 × 42 mm
  12VDC0.2-3.2A
–5VDC0.0-0.7A
PT-65B 90-264VAC; 120-370VDC  5VDC0.4-7.0A 127 × 76 × 28 mm
  12VDC0.2-3.2A
–12VDC 0.0-0.7A
PT-65C 90-264VAC; 120-370VDC   5VDC0.4-7.0A 127 × 76 × 28 mm
  15VDC  0.2-2.6A
–15VDC 0.0-0.7A
PT-65D 90-264VAC; 120-370VDC   5VDC0.5-5.0A127 × 76 × 28 mm
  12VDC0.2-4.0A
  24VDC0.2-1.3A
PT-6503 90-264VAC; 120-370VDC   3VDC0.0-7.0A127 × 76 × 28 mm
  5VDC0.2-10.0A
  12VDC0.0-1.2A

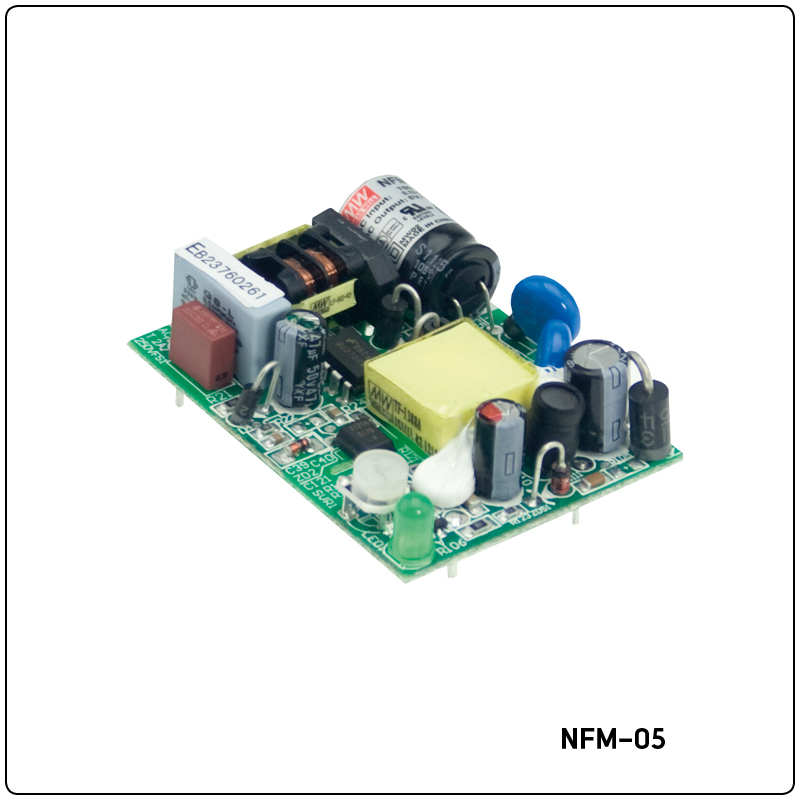

5W NFM SERİSİ
NFM-05-3.385-264 VAC 120-370VDC3.3VDC1.25A57,9X45X19.1mm
NFM-05-585-264 VAC 120-370VDC5VDC1A57,9X45X19.1mm
NFM-05-1285-264 VAC 120-370VDC12VDC0.42A57,9X45X19.1mm
NFM-05-1585-264 VAC 120-370VDC15VDC0.33A57,9X45X19.1mm
NFM-05-2485-264 VAC 120-370VDC24VDC0.23A57,9X45X19.1mm

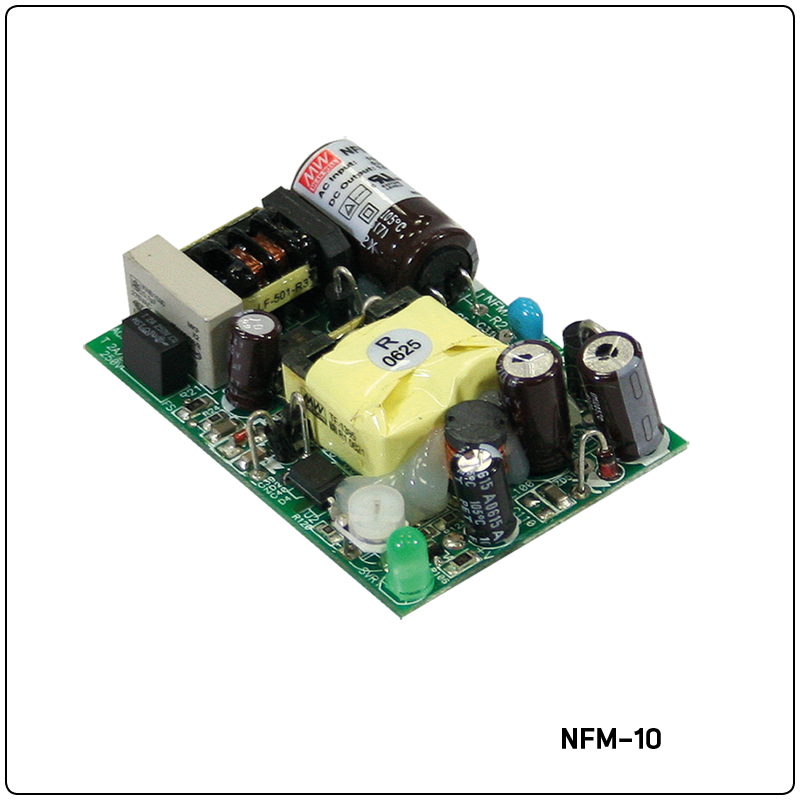

10W NFM SERİSİ
NFM-10-3.385-264 VAC 120-370VDC3.3VDC2.5A65X45X22 mm
NFM-10-585-264 VAC 120-370VDC5VDC2A65X45X22 mm
NFM-10-1285-264 VAC 120-370VDC12VDC0.85A65X45X22 mm
NFM-10-1585-264 VAC 120-370VDC15VDC0.67A65X45X22 mm
NFM-10-2485-264 VAC 120-370VDC24VDC0.42A65X45X22 mm

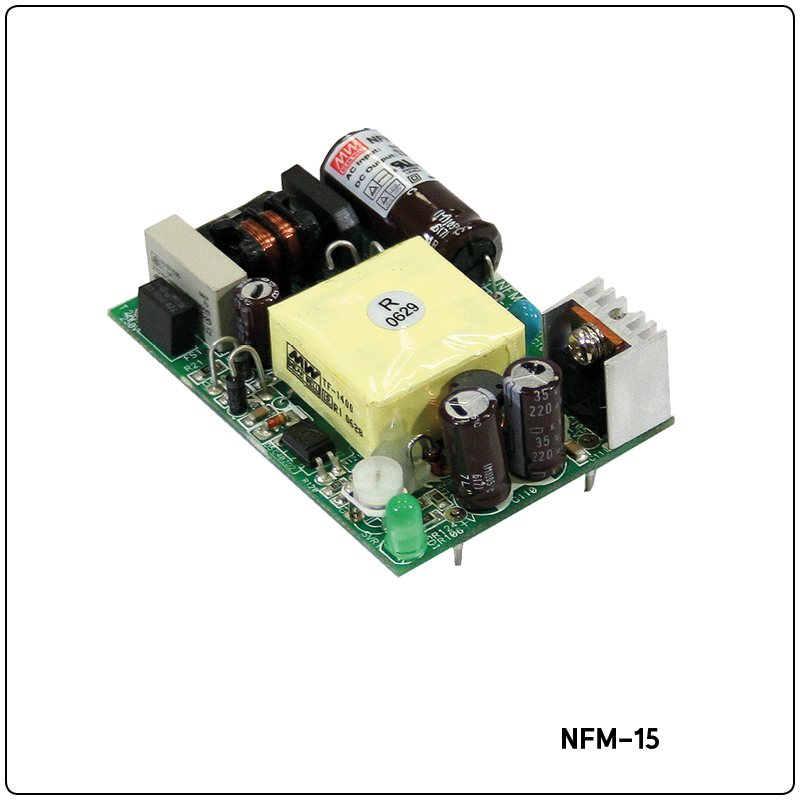

15W NFM SERİSİ
NFM-15-3.385-264 VAC 120-370VDC3.3VDC3.5A69.85X48X22mm
NFM-15-585-264 VAC 120-370VDC5VDC3A69.85X48X22mm
NFM-15-1285-264 VAC 120-370VDC12VDC1.25A69.85X48X22mm
NFM-15-1585-264 VAC 120-370VDC15VDC1A69.85X48X22mm
NFM-15-2485-264 VAC 120-370VDC24VDC0.63A69.85X48X22mm

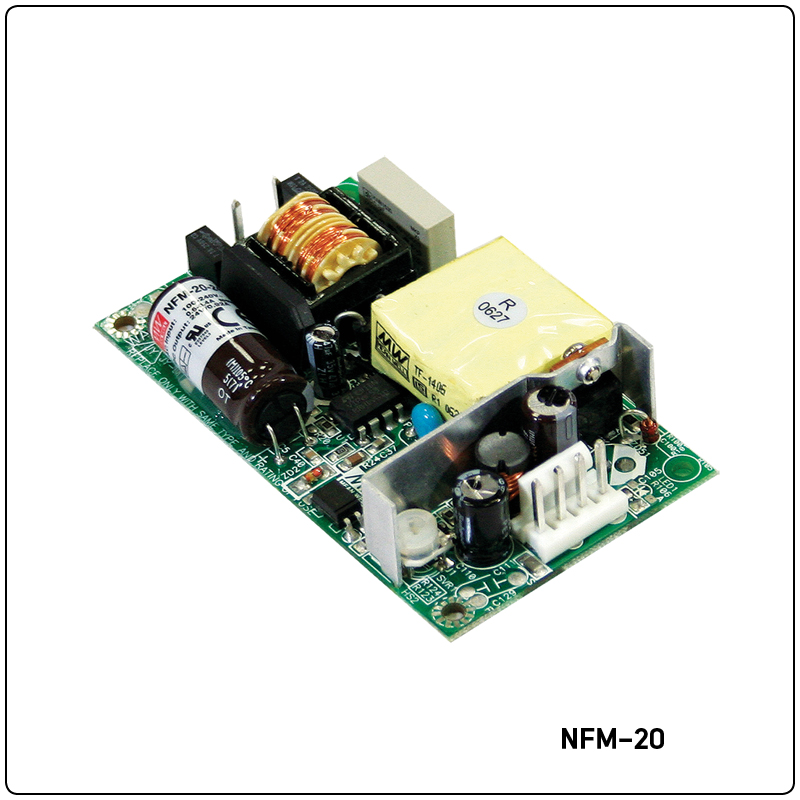

20W NFM SERİSİ
NFM-20-3.385-264 VAC 120-370VDC3.3VDC4.5A88.9X50.8X19.3mm
NFM-20-585-264 VAC 120-370VDC5VDC4.4A88.9X50.8X19.3mm
NFM-20-1285-264 VAC 120-370VDC12VDC1.8A88.9X50.8X19.3mm
NFM-20-1585-264 VAC 120-370VDC15VDC1.4A88.9X50.8X19.3mm
NFM-20-2485-264 VAC 120-370VDC24VDC0.92A88.9X50.8X19.3mm
  • Ebatlar (Boy x En x Yükseklik) mm.
